BP850 narrow-band filter

Narrow band interference filter is a kind of narrow bandwidth, allowing specific wavelengths of light through the optical devices, so the short wavelength band cut-off or reflection.

Pass filter with multiple epidural with my company by ion assisted deposition of nano materials of high vacuum evaporation a layer, good compactness, high image resolution.

產品資訊

關閉

產品咨詢

客服熱線：400-700-9997

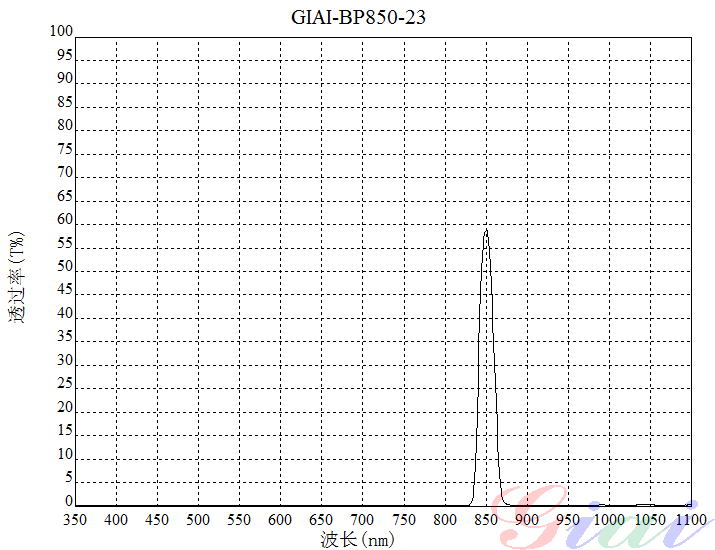

BP850 filter graph:

Giai photnics co. , ltd

Product features:

Narrow band interference filter is a kind of narrow bandwidth, allowing specific wavelengths of light through the optical devices, so the short wavelength band cut-off or reflection.

Pass filter with multiple epidural with my company by ion assisted deposition of nano materials of high vacuum evaporation a layer, good compactness, high image resolution.

Field of application:

Fluorescence analyzer, microplate, cable TV upgrade equipment, wireless communication equipment, mobile phone bar code scanning, infrared electronic whiteboard, infrared camera, infrared touch screen, iris recognition, infrared medical instruments, infrared printing ink recognition, red film recognition, face recognition sensor system. Handheld infrared laser rangefinder, laser range finder, optical instrument, medical equipment and testing instruments.

Optical index:

350nm-830nmT<0.01%

870nm-1100nmT<0.1%

FWHM:25nm

CWL:850nm T>58%:
